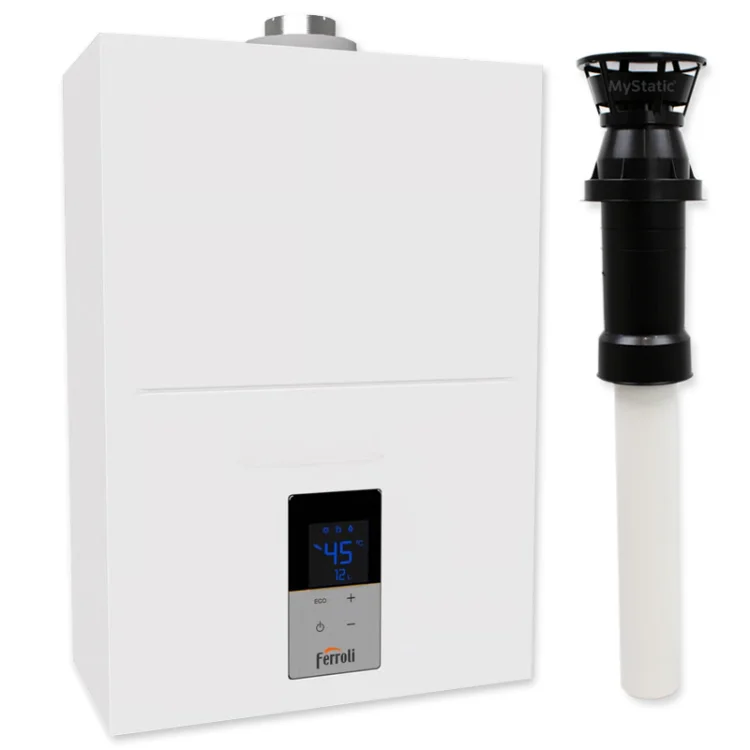

Ferroli Kona 12L LPG Room Sealed Water Heater with Vertical Flue Kit

Ferroli Kona 12L LPG Room Sealed Water Heater Vertical Flue Kit

The Ferroli Kona 12L Gas Water Heater is an instantaneous, sealed combustion (Type C), forced-draught appliance with Low NOx technology. It delivers efficient hot water via a copper heat exchanger, touch-control interface, and modulating thermal output. The unit also supports solar-assisted systems for energy savings.

Features:

• Brand: Ferroli
• Part Number: ODK96KAA
• Copper heat exchanger
• ErP Class A
• Low NOx Class 6 (EN 15502 compliant)
• XL load profile
• Interface with display and touch controls
• Modulating thermal output
• LPG
• Low NOx burner - Class 6
• ECO function - reduces output to 80% for energy saving
• Solar energy function - works with solar pre-heating, activating only when inlet water temperature is below setpoint

Specifications:

• Flow Rate: 12 L/min
• Inlet Thermal Power (Max): 23 kW
• Output Thermal Power (Max/Min): 20.9 / 3.6 kW
• Working Max Water Pressure: 10 bar
• Max DHW Flow: 12 L/min (Δt 25 °C) / 10 L/min (Δt 30 °C)
• DHW Temp Setting: 40–65 °C
• Electrical Supply: 230 V / 50 Hz
• Max Flue Pressure: 80 Pa
• IP Rating: IPX4D (splashproof)

Dimensions & Connections:

• Length: 525mm
• Width: 370mm
• Height: 190mm
• Weight (Empty): 13.7kg
• Connections (bottom):
  • Cold Water Inlet - ½"
  • Hot Water Outlet -½"
  • Gas Inlet - ½"

Vertical Flue Kit:

• Part Number: 1KUKK001
• Compatibility: Ferroli Kona LPG water heaters
