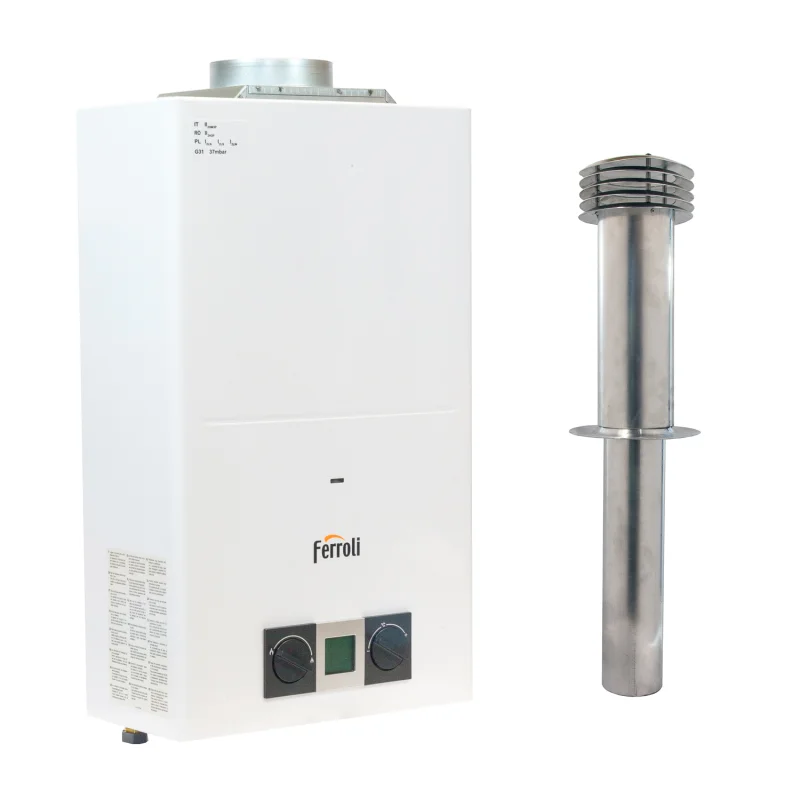

Ferroli Pegaso Eco 11 LPG Water Heater with Flue Kit

Ferroli Pegaso Eco 11 LPG Gas Water Heater

The new Pegaso Eco is a high-performance, low-emission water heater designed for domestic hot water production. Powered by LPG and equipped with a compact, water-cooled, battery-powered burner with electronic ignition, it operates effectively in conditions ranging from -5 °C to +60 °C. This model is the direct replacement for the Cointra CPA 11, which was discontinued in early 2023, and shares the majority of internal components.

An ideal hot water solution for most types of static caravans, the Pegaso gas water heaters offer excellent efficiency, compact dimensions, and a wide range of hot water temperature and power settings.

Features & Benefits:

• Low NOx wall-mounted gas water heater with open chamber and natural draft
• Modulating heat power for improved control and efficiency
• Wide range of hot water temperature regulation
• Compact size and lightweight construction
• Heat exchanger with copper pipes and aluminium rustproof coating
• Battery-powered electronic ignition
• Simple power and temperature regulation via ergonomic knobs
• 2 Year Warranty

Technical Info:

• Gas Type: LPG
• Water Connections: 1/2" BSP
• Sound Power Level: 58 dB
• Low NOx (max): 52 mg/kWh
• Heat Capacity: Max 11.8 kW | Min 6.3 kW
• Performance at Max Power: 87%
• Gas Supply Pressure: 37 mbar
• Output Power: Min 7 kW | Max 18.9 kW
• Operating Pressure: Min 0.2 bar | Max 10 bar
• Empty Weight: 9.5 kg
• Max Water Flow Rate: 10.8 L/min
• Power Supply: Battery

Dimensions:

• Height: 560mm
• Width: 330mm
• Depth: 180mm

Product Notes:

The Pegaso Eco 11 is a direct upgrade from the discontinued Cointra CPA 11 and retains full compatibility with most existing static caravan installations. It offers reliable performance in varying conditions and is engineered for ease of installation and maintenance.

Static caravan / lodge installation only – not suitable for motorhomes, touring caravans, boats etc

Vertical Flue Kit:

• Flue Length:
  • Total length (maximum): 930mm
  • Main section: 600mm
  • Upper section: 330mm
• Compatibility: Ferroli Pegaso Eco 11 LPG

Please Note:

For static caravan and lodge installation only.

Not suitable for touring caravans, motorhomes, or trailers.

When used with a water pump, ensure it delivers a minimum of 40 PSI.
