Rinnai 17e Infinity LPG Water Heater 17L Low-NOx

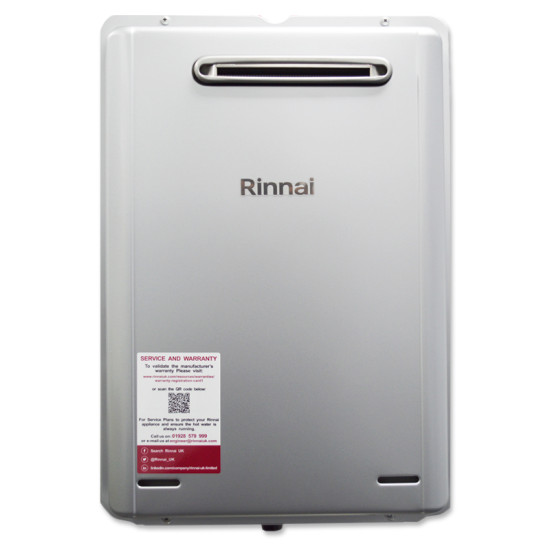

Rinnai 17CE Infinity 20L LPG Condensing Water Heater

The Rinnai Infinity E Series is a range of external gas-fired continuous flow water heaters designed to provide a continuous supply of hot water. As long as electricity, water, and gas services are connected, temperature-accurate hot water will be available whenever needed.

With a 93% (Gross) efficiency rating, the E Series helps reduce energy consumption and operational costs. Its external mounting design comes with IPx5D water ingress protection for reliable outdoor installation.

Smart micro-processors maintain hot water at the desired pre-set temperature, ensuring efficient operation and preventing temperature fluctuations that could cause scalding.

Features:

• Compact and space-saving design
• Lightweight: Easy to handle without heavy lifting gear
• Hot Water Delivery: Maximum flow rate of 20L/min
• Temperature Accuracy: Precise control of -1 / +1 from the setpoint
• Direct Force Exhaust System for safe venting
• Wide Temperature Range: 37-65°C
• Direct Electronic Ignition for reliable operation
• High Efficiency: Gross Efficiency 93%, Net Efficiency 103%
• IPx5D Rated for weather protection

Dimensions:

• Length: 531mm
• Width: 270mm
• Depth: 191mm
• Weight: 18kg

Additional Information:

The advanced micro-processors in the Rinnai KCM continuous flow water heaters measure incoming water temperatures and adjust the gas input as needed. This modulation ensures that only the necessary energy is used to heat the water, resulting in reduced energy consumption, operational costs, and carbon emissions.

The water heater continuously monitors water temperature and automatically shuts off if the temperature exceeds the set point by more than 3 degrees. The ignition system is fully electric, eliminating the need for a pilot flame. No gas is used when the hot water supply is off.

Rinnai KCM water heaters are fan-assisted (power flue) appliances, making them compact and lightweight at 18kg. Remote connectivity is available, providing access to temperature settings, diagnostic information, error codes, and other features via BMS or over IP.
