Matrix 60cm Stainless Steel Canopy Extractor - MXIN60SS

Matrix Stainless Steel Canopy Extractor 60cm - MXIN60SS

The Matrix MXIN60SS is a 60cm stainless steel canopy extractor with three fan speeds and simple push button controls. It includes 2 x 4W LED lights to illuminate the hob area and can be installed for extraction or recirculation using the optional CHA15 charcoal filters. This model is designed to fit neatly into kitchen cabinetry while providing standard ventilation functions and lighting.

Features:

• Brand: Matrix
• Model: MXIN60SS
• 60cm stainless steel canopy extractor
• Ducted or recirculating installation
• Push button controls
• 3 fan speeds
• Extraction rates up to 206 m3/hr
• 2 x 4W LED lights
• 3000K warm white lighting
• Aluminium cassette grease filter
• Dishwashable grease filter
• Energy rating: C
• Charcoal filter compatible: CHA15 (2 required for recirculation)

Technical Specifications:

• Outlet diameter: 120mm or 125mm
• Protection class: Class I
• Mains lead length: 1m
• Rated electrical power: 48 W
• Motor input: 40 W
• Pressure value: 136 Pa
• Energy consumption per annum: 29.4 kWh
• Required height above gas hobs: 750mm (min)
• Required height above electric hobs: 650mm (min)

Extraction Rates & Noise:

• Speed 1: 133 m3/hr – 56 dBA
• Speed 2: 169 m3/hr – 60 dBA
• Speed 3: 206 m3/hr – 63 dBA

Filters:

• Grease filter type: Cassette aluminium
• Number of grease filters: 1
• Dishwashable grease filter: Yes
• Number of layers: 3
• Grease filtering efficiency class: F
• Optional charcoal filters required: 2
• Charcoal filter code: CHA15

Lighting:

• Light type: LED
• Number of lights: 2
• Wattage: 4W each
• Colour temperature: 3000 K
• Lighting energy rating: E

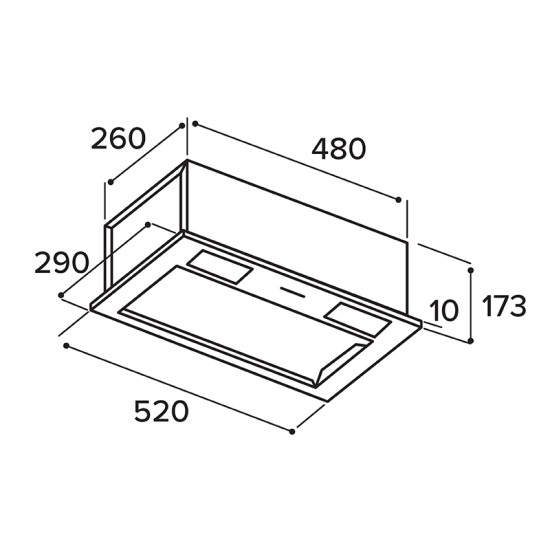

Dimensions:

• Width: 520mm
• Height: 175mm
• Depth: 292mm
• Net weight: 3.8kg
• Gross weight: 4.7kg

Product Notes:

• Suitable for ducted extraction or recirculating installation.
• For recirculating use, 2 x Matrix CHA15 charcoal filters are required (sold separately).
• WEEE category: 1
