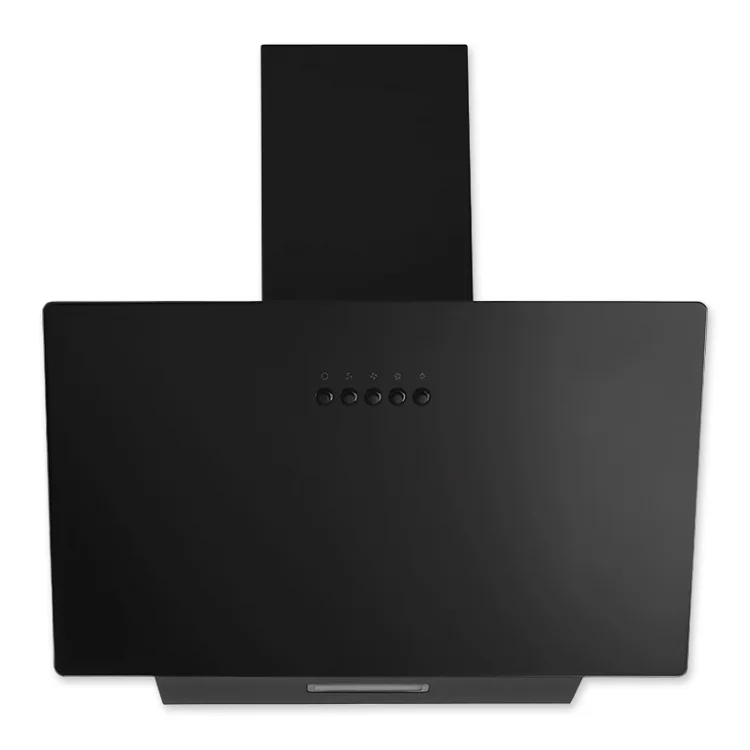

Matrix 60cm Black Angled Extractor - MXAG60BL

Matrix Black Angled Extractor 60cm - MXAG60BL

The Matrix MXAG60BL is a 60cm black angled extractor with a modern glass design and practical feature set. It includes three fan speeds operated by push button control, a 2W LED light for hob illumination, and a washable grease filter. The extractor can be installed for either ducted or recirculating use with the optional CHA15 charcoal filter. Rated A for energy efficiency, this model provides standard extraction performance in a compact angled format.

Features:

• Brand: Matrix
• Model: MXAG60BL
• 60cm black angled glass extractor
• Height adjustable chimney section
• Push button controls
• 3 fan speeds
• Ducted or recirculating installation
• Energy rating: A
• Compatible with CHA15 charcoal filter (1 required for recirculation)

Technical Specifications:

• Outlet diameter: 150mm or 125mm
• Outlet position: Top
• Protection class: Class I
• Mains lead length: 1m
• Rated electrical power: 47 W
• Motor input: 45 W
• Fuse: 3 A
• Pressure value: 145 Pa
• Energy consumption per annum: 19 kWh
• Required height above gas hobs: 750mm (min)
• Required height above electric hobs: 650mm (min)
• WEEE category: 1

Extraction Rates & Noise:

• Speed 1: 214 m3/hr - 55 dBA
• Speed 2: 243 m3/hr - 62 dBA
• Speed 3: 300 m3/hr - 64 dBA

Filters:

• Grease filter type: Cassette aluminium
• Number of grease filters: 1
• Dishwashable grease filter: Yes
• Number of layers: 3
• Grease filtering efficiency class: G
• Number of charcoal filters required: 1 (optional)
• Charcoal filter code: CHA15

Lighting:

• Light type: LED
• Number of lights: 1
• Wattage: 2W
• Colour temperature: 4000K
• Lighting energy rating: A

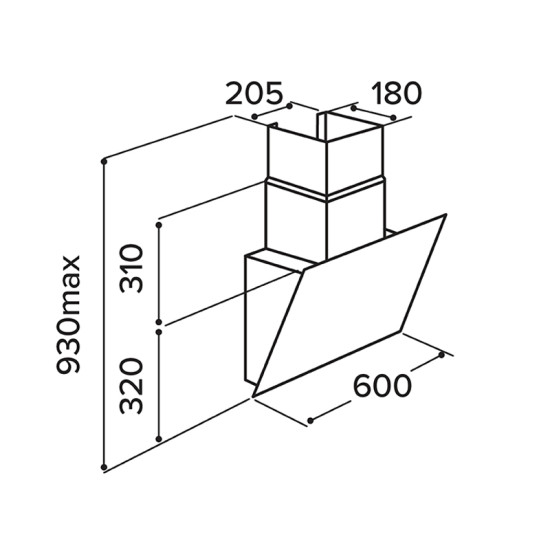

Dimensions:

• Width: 600mm
• Depth: 320mm
• Height: 630-930mm (adjustable)
• Net weight: 7.5kg
• Gross weight: 9kg

Product Notes:

• Suitable for ducted extraction or recirculating installation.
• For recirculating use, 1 x Matrix CHA15 charcoal filter is required (sold separately).

What is a Ducted or Recirculating Extractor?

A ducted extractor removes cooking air through external ducting to the outside of the property. A recirculating extractor filters the air using grease and charcoal filters before returning it back into the kitchen.
