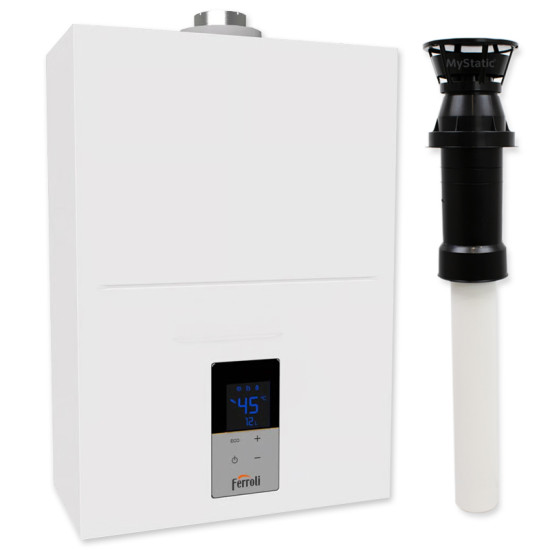

Ferroli Kona | 12L Room Sealed Water Heater with Vertical Flue Kit

Ferroli Kona | 12L Room Sealed Water Heater with Vertical Flue Kit

The Ferroli Kona 12L Gas Water Heater is an instantaneous, sealed combustion (Type C), forced-draught appliance with Low NOx technology. It delivers efficient hot water via a copper heat exchanger, touch-control interface, and modulating thermal output. The unit also supports solar-assisted systems for energy savings.

Features:

• Brand: Ferroli
• Part Number: ODK96KAA
• Copper heat exchanger
• ErP Class A
• Low NOx Class 6 (EN 15502 compliant)
• XL load profile
• Interface with display and touch controls
• Modulating thermal output
• LPG
• Low NOx burner - Class 6
• ECO function - reduces output to 80% for energy saving
• Solar energy function - works with solar pre-heating, activating only when inlet water temperature is below setpoint

Specifications:

• Flow Rate: 12 L/min
• Inlet Thermal Power (Max): 23 kW
• Output Thermal Power (Max/Min): 20.9 / 3.6 kW
• Working Max Water Pressure: 10 bar
• Max DHW Flow: 12 L/min (Δt 25 °C) / 10 L/min (Δt 30 °C)
• DHW Temp Setting: 40–65 °C
• Electrical Supply: 230 V / 50 Hz
• Max Flue Pressure: 80 Pa
• IP Rating: IPX4D (splashproof)

Dimensions & Connections:

• Length: 525mm
• Width: 370mm
• Height: 190mm
• Weight (Empty): 13.7kg
• Connections (bottom):
  • Cold Water Inlet - ½"
  • Hot Water Outlet -½"
  • Gas Inlet - ½"

Vertical Flue Kit:

• Part Number: 1KUKK001
• Compatibility: Ferroli Kona LPG water heaters
